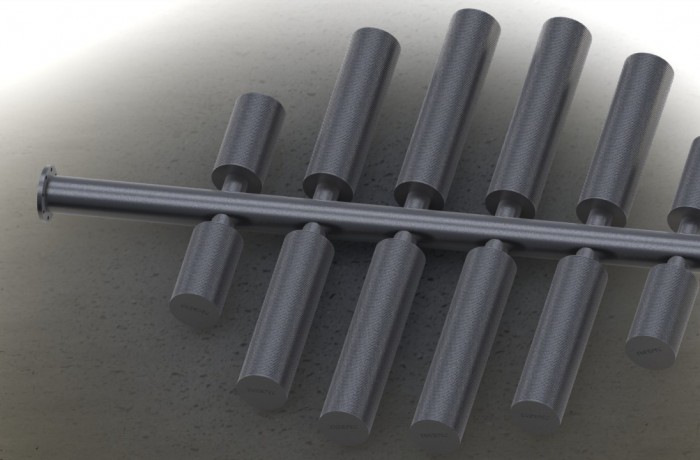

Header lateral

For the treatment of process water such as in ‘Ion Exchange’ and in the process of removing organic matter, ENERPEC offers products such as the Header and Hub-Lateral Systems to uniformly collect and distribute process flow. Sizing of both the main header pipe and the screen laterals are based on recommended through-pipe and slot opening velocities to ensure higher efficiency and lower pressure drop. Sizing of the slot size is also critical to ensure that there is no resin/media migration. The screen laterals (screen-based or screen + drilled pipe-based) are removable and can be designed with either a flange or threaded nipple connection.

Each of our Header and Hub-Lateral Systems are carefully designed from your specified design conditions that includes the vessel inside diameter, volumetric flow rate, allowable pressure drop through the screen, resin/media to be retained and minimum open area to list. Therefore it is very important to work closely with ENERPEC during the design and engineering stage to ensure that all screen characteristics are accommodated for.
