Slotted Screen Well Screen

Slotted liner is a robust and effective device for sand control in the horizontal completion wells of SAGD and other thermal heavy oil recovery. Its excellent properties in withstanding installation loads and operation loads make it the premier choice for SAGD.

Slotted liners are manufactured by laser cutting process without contact operation. This process can effectively avoid undesirable factors which will cause the deformation of the base pipe. Laser cutting process uses windows interface for easy operation and accurate calculation.

Slotted liner geometry consists of slot length, slot width, slot density and slot distribution. All these parameters can be bespoken to achieve the required open area. For example, multiple staggered pattern or gang pattern significantly increases the open area compared with single cut pattern.

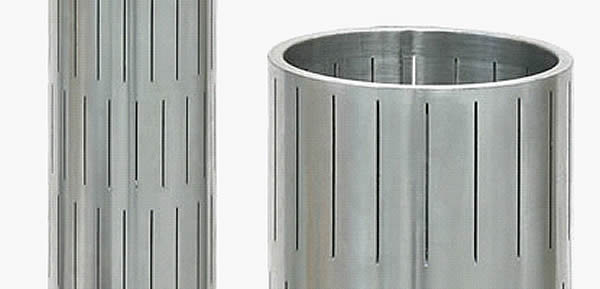

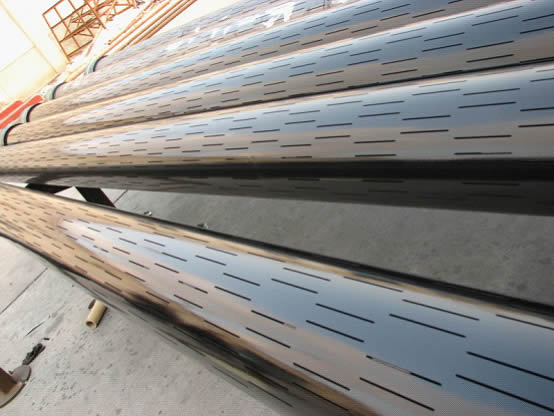

Staggered slotted liner fabricated by advanced laser cutting process

Slotted liner patterns
Three slotted liner patterns -straight, staggered and gang - are supplied. Each has its own characteristics.

Straight pattern	Staggered pattern	Gang pattern

Slotted geometry
Slotted shapes are classified into two types: straight cut slot and keystone slot. Compared with straight slot, keystone slot has higher resistance against plugging for its inter size is larger than the surface size. Once the sand entering the keystone slot, the possibility of clogging will drop sharply.

Straight cut slot	Keystone slot

Features:
Moderate cost
Ease of installation
Sufficient operation load
Non-plugging
Laser cutting process

Product specification
